Electric power tool cutting blades are becoming increasingly widely used, replacing ordinary grinding wheels.

Compared to ordinary grinding wheels, they offer a more environmentally friendly cutting process, higher efficiency, and the metal shavings can even be sold as scrap.

These advantages have made electric power tool cutting blades increasingly popular among users.

Metal-ceramic cutting heads are more difficult to grind than carbide cutting heads.

We have developed a specialized solution for grinding these difficult-to-grind ceramic cutting heads.

The specific operating parameters are as follows:

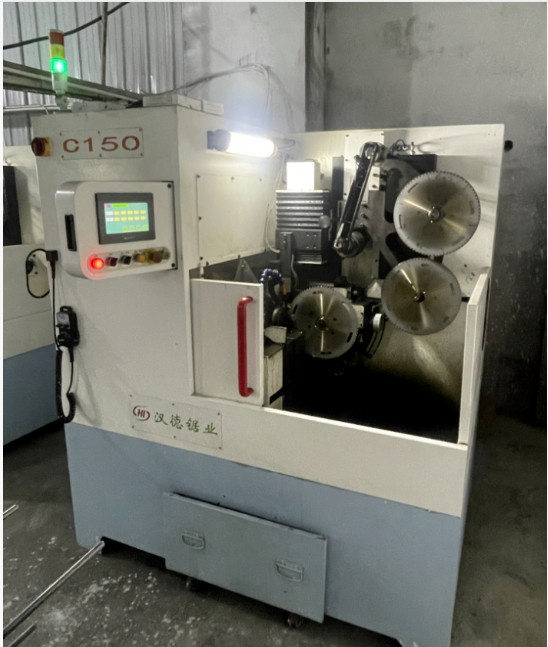

Equipment: Handt Side Tooth Grinding Machine C150

Grinding Wheel Specifications: 100×20×7x4.2x25T 180JT-06B04

Cooling: Water cooling

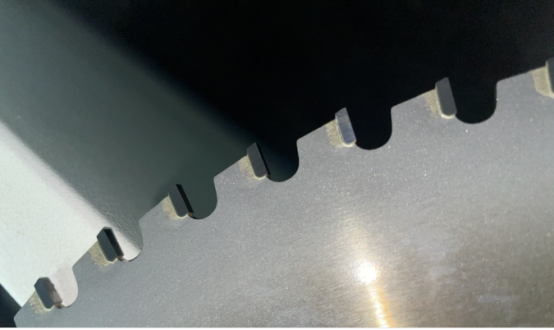

Workpiece Dimensions: 355X66 teeth, tooth length 6mm, tooth thickness 2.6mm

Workpiece Material: Metal-ceramic cutting head from a domestic manufacturer

Feed Rate: Rough grinding 5mm/s, 2 passes, removing 6 microns;

Fine grinding 2mm/s, 3 microns per pass, return stroke during retraction

Grinding Time: 1 saw blade/1000 seconds

Dressing Frequency: 1um compensation per 1000 teeth
